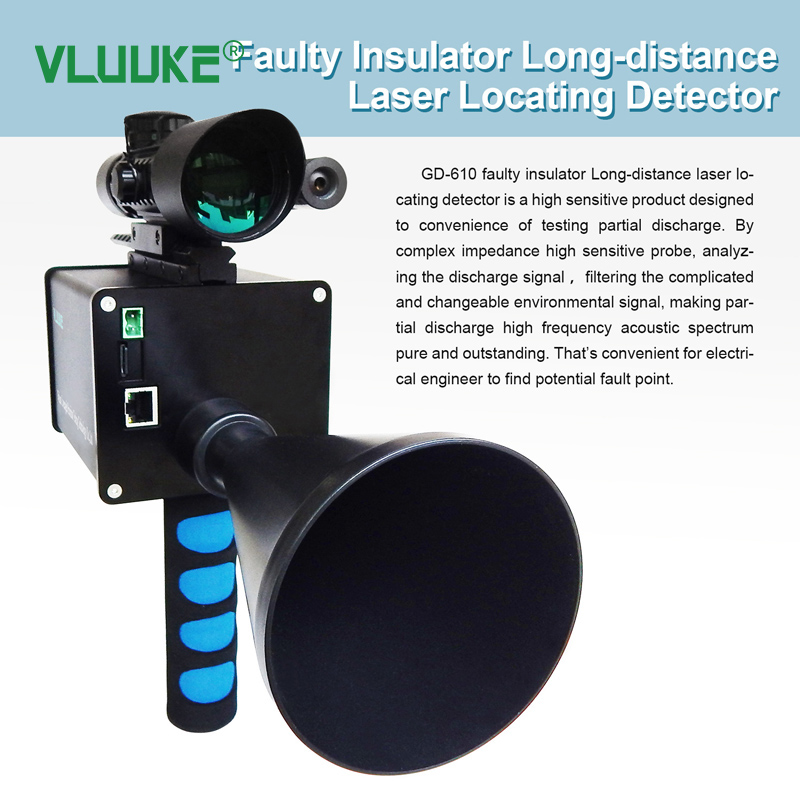

GD-610 faulty insulator Long-distance laser locating detector is a high sensitive product designed to convenience of testing partial discharge. By complex impedance high sensitive probe, analyzing the discharge signal ,filtering the complicated and changeable environmental signal, making partial discharge high frequency acoustic spectrum pure and outstanding. That's convenient for electrical engineer to find potential fault point.
Main part | 1 | Center frequency：40KHz±2Hz |
2 | Sensitivity： | |
3 | Operating voltage：7.4V（two lithium-ion batteries） | |
4 | Size：250×125×140（mm） | |
Aluminum alloy tray | 1 | Laser wavelength：650nm Beam divergence：0.4m ard |
2 | 2.5-10×40 scope, dismountable hand shank, tripod standard hold-down nut. | |
3 | High frequency sensor： centre frequency fo： 40K Hz±2Hz | |
Headset | 1 | Rated impedance Z：125Ω |
2 | Frequency range：100Hz-10KHz | |
3 | sensitivity： （1W/1m）60dB | |
Charger | 1 | Input：AC220V±10% |
2 | Input Voltage frequency：50Hz±5% | |
3 | output：DC 8.4V | |
4 | Output current：1A | |
5 | Packing size ：470mm×340mm×420mm | |
| 1 | Working humidity:（0～100）%RH |
2 | Operating temperature：-30～60℃ | |
3 | Total machine weight：7.18kg |

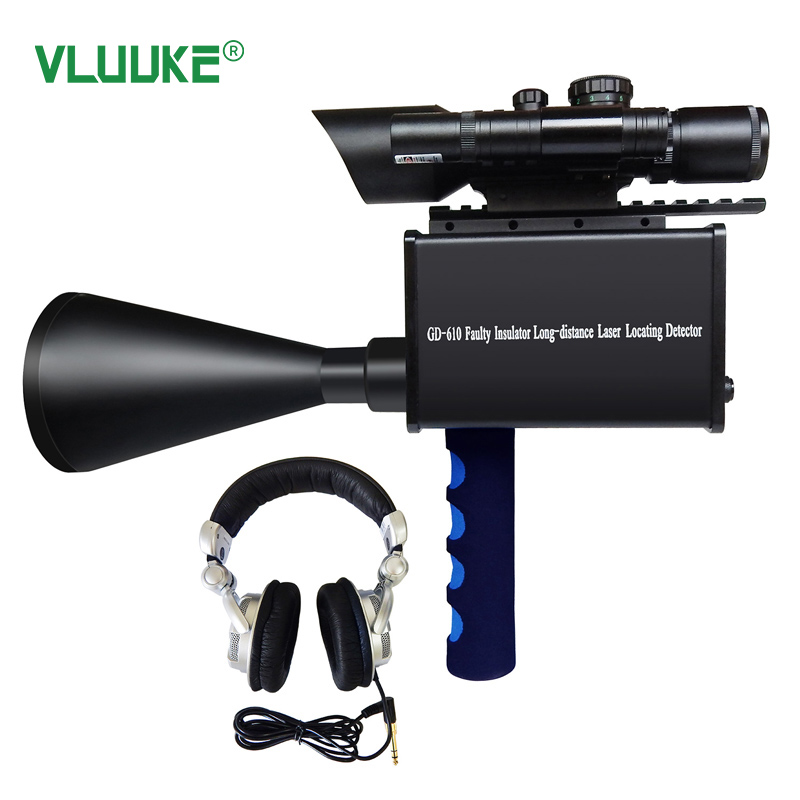

GD-610 Faulty Insulator Long-distance Laser Locating Detector
