Technical Parameters
1 Rated output voltage: 0-270kV
2 Resonant voltage waveform: sine wave, waveform distortion rate<1.0%
3 Maximum test current: 30A
4 Maximum test capacity: 810kVA
5 Output frequency: 30-300Hz
6 Working time: Continuous working time of 60 minutes at full power output
7 Quality factor: 30-90
8 Input working power supply: single-phase 220V or 380V ± 5%, 50Hz
9 Environmental temperature: -15 ℃ to+40 ℃
10 Relative humidity: ＜ 90RH%, no condensation condition
11 Altitude: ＜ 3500m
12 Noise: ≤ 50dB
Feature

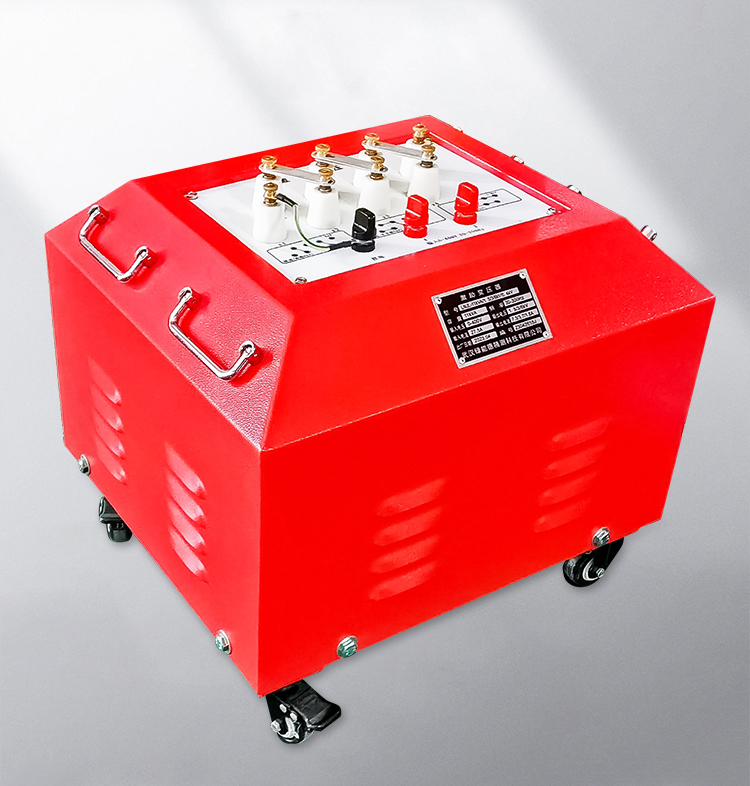

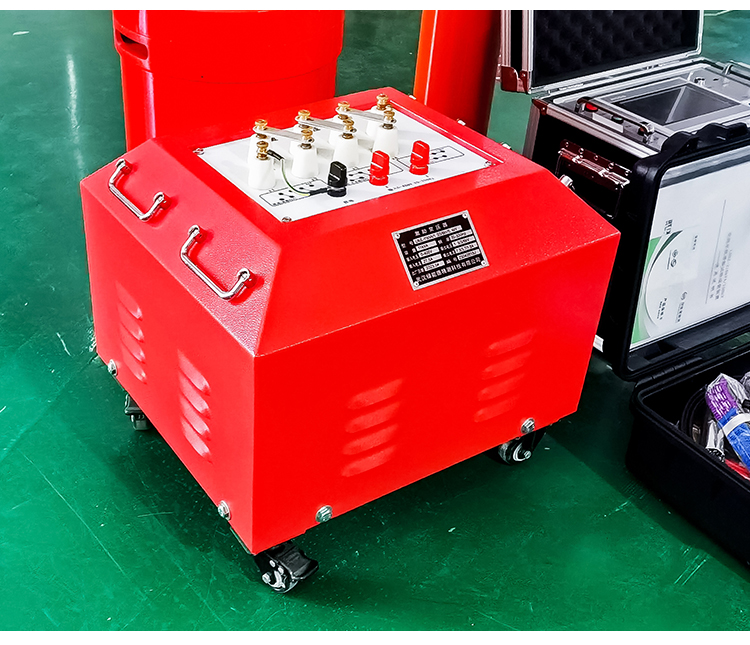

(1) The Driver Transformer is a dry-type structure with no concern for oil leakage
(2) Static shielding layers are installed between the high and low voltage windings and the iron core, serving as both excitation and isolation transformers.
(3) Built in overvoltage protection to prevent breakdown and counterattack
