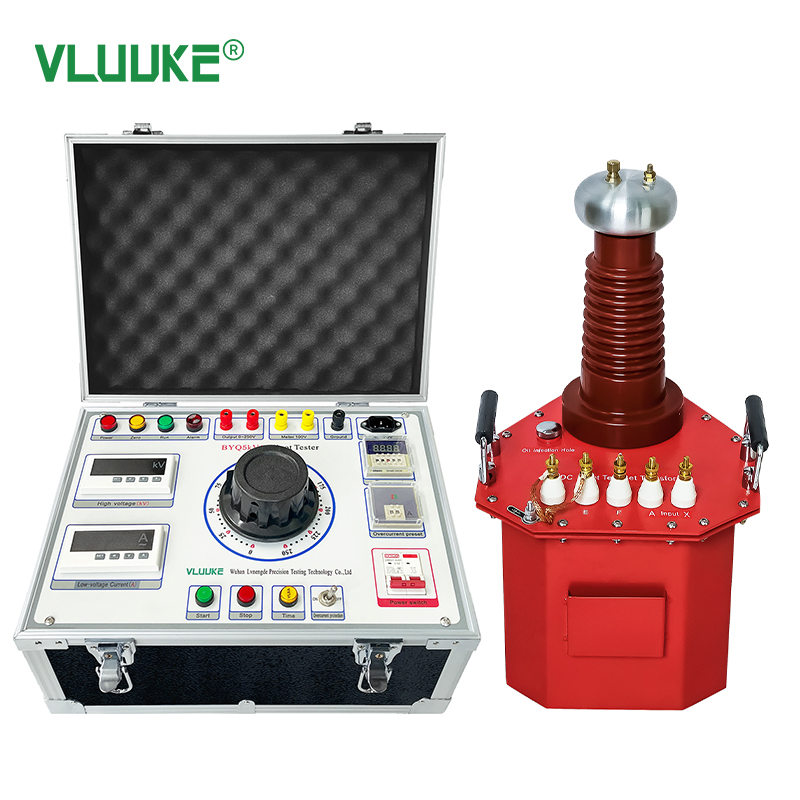

BYQ5kVA Hipot Tester uses the single frame iron core structure. First circle resistance rolls on the iron core and high voltage outside. This axial structure reduces the magnetism leakage and rises the coupling of the circle resistance.

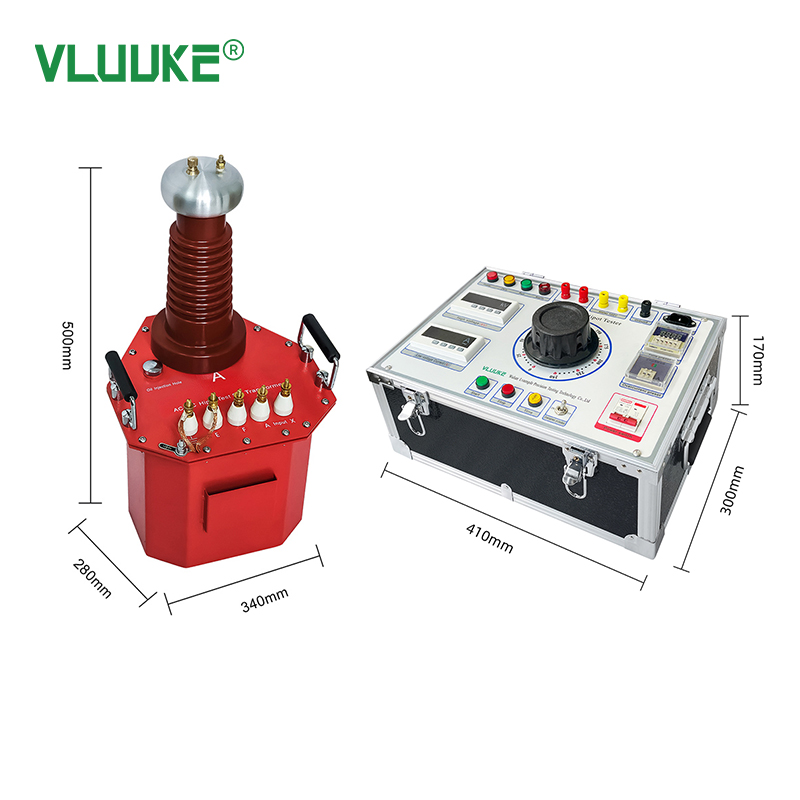

The hull of the production is made as octagonal which can well match the core structure.

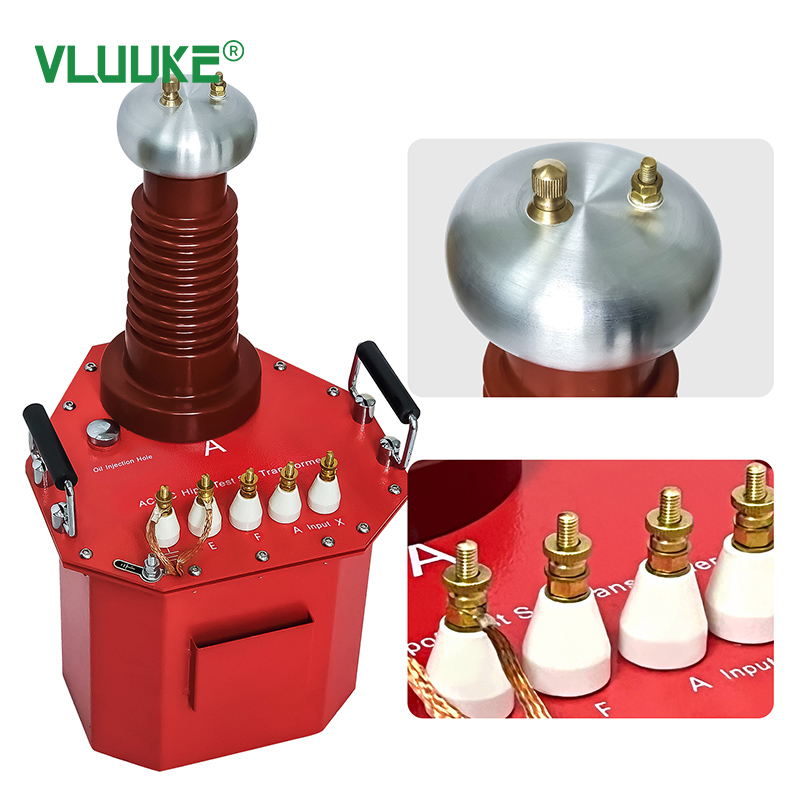

In the BYQ5kVA Hipot Tester, a and x are low voltage input port, E,F are meter measuring port, A,X are high voltage output.

BYQ5kVA Hipot Tester is a single phase transformer, with power frequency of 220V (10kVA for 380V). Power connects to XC/TC (our professional product for testing transformer, its details refer to the operation manual) series operation box, through inside the auto-transformer voltage adjuster (50kVA or more outside) to 0-200V (or 0-400V). The voltage outputs to BYQ5kVA Hipot Tester’s first windings. Based on the principle of electromagnetic induction, we can get the proper high voltage when testing the high voltage winding.

1. Operating system

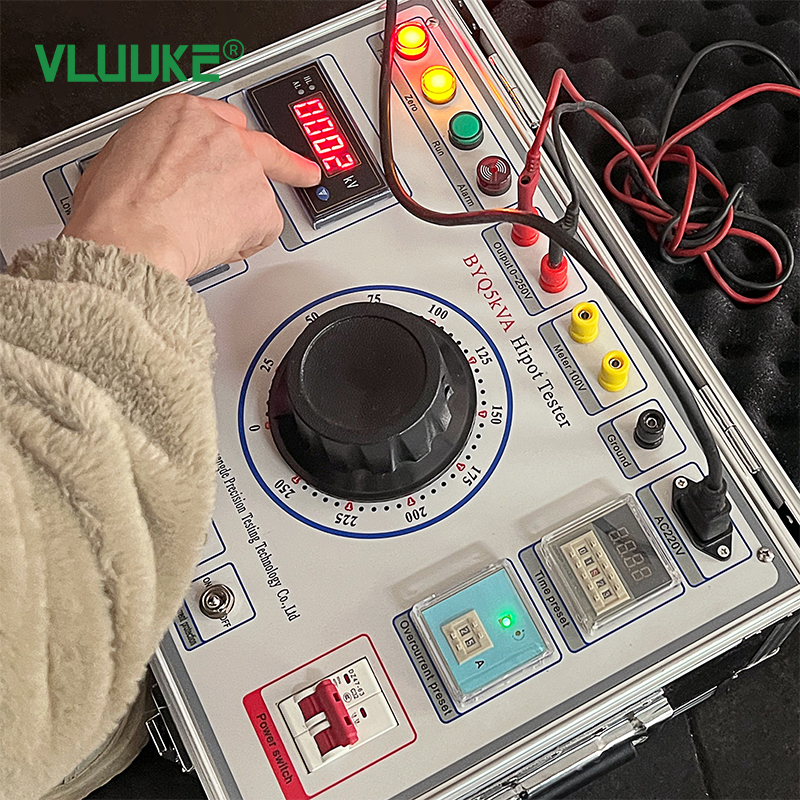

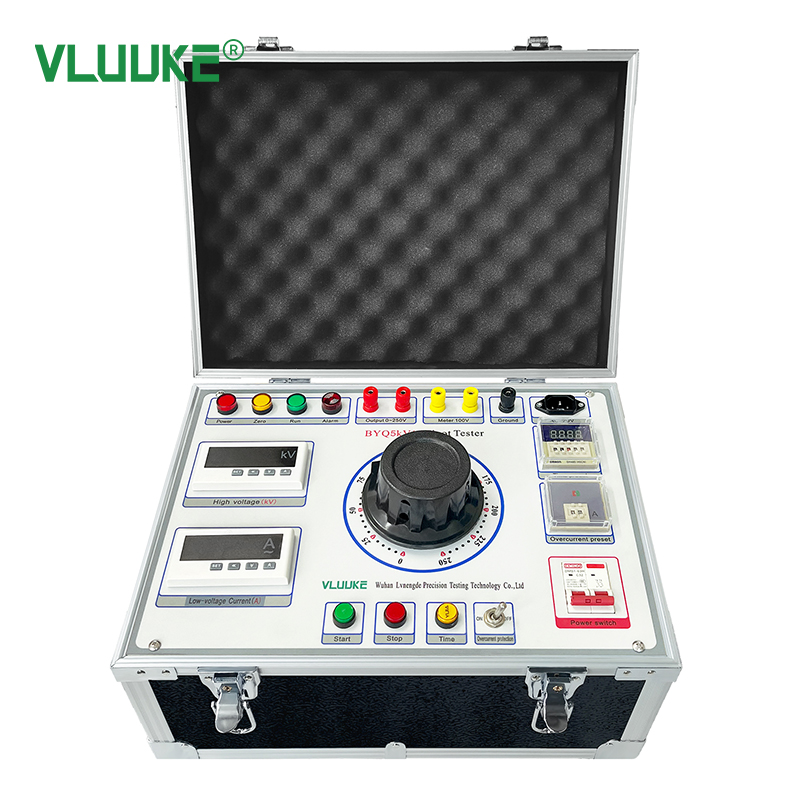

BYQ5kVA Hipot Tester operating cabinet

Capacity: 1kVA~5kVA   input voltage: 0.22kV

BYQ5kVA Hipot Tester operating console

Capacity: 10kVA~300kVA    input voltage: 0.22kV 0.38kV

2. The protection of digital micro-amp  0-1999ｕA

3. RC-type AC-DC voltage divider    FRC—50、100、150、200kV

4. High voltage DC discharge rod  FD—70、140、210kV

5. High-voltage silicon            2DL—150、300、450kV

6. Insulation Support              50、100、200、300kV

7. High-voltage filter capacitor      0.01μF~0.1μF，40~100kV

8. End shielding

9. Sphere gap           Q—50、100、150、200、250、500

10. Standard Test Cup                  400ml

11. Medium Oil Cup

12. Wheelbarrow                      Type 150、300

13. Water resistance

14. High voltage electroscope             10、35kV

15. High voltage phasing device           10、35、110、220kV

16. All kinds of multi-meter, mega meter and testing wire
