1.High-Performance Industrial Control Computer

2.Digital Signal Processor Microcomputer

3.D/A Conversion and Low-Pass Filtering

4.Voltage and Current Amplifier

5.Digital Input and output

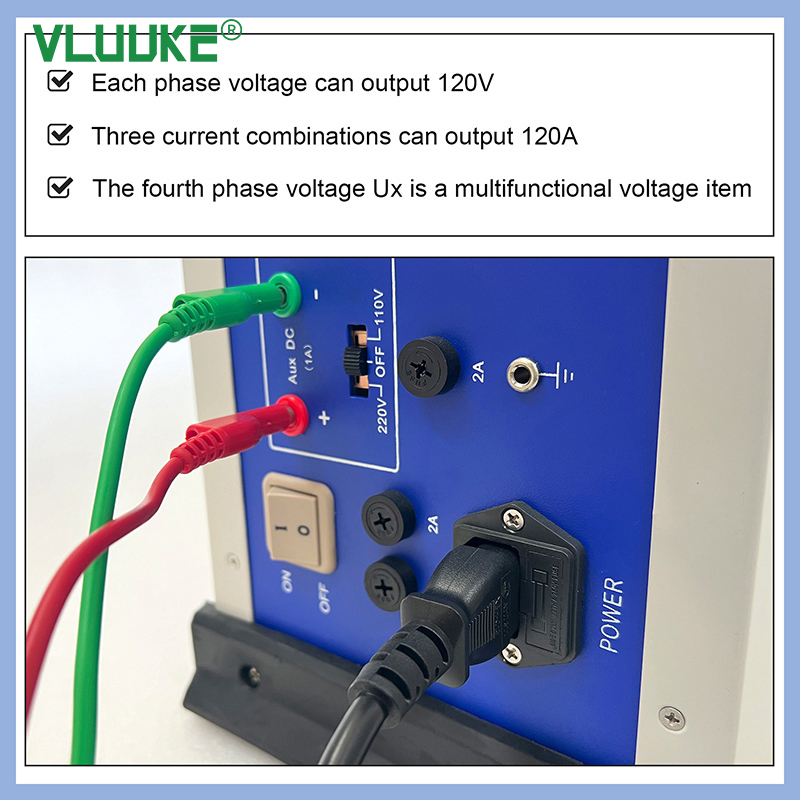

6. Auxiliary DC Power Supply Output for Special Use

AC current output：

Phase current output (effective value)： 0~40A，Output Precision  0.2 degree

3 phase parallel current output (effective value)：0~120A

A Long-time Phase current：10A

Maximum output power of Phase current ：450VA

Maximum output power of 3 parallel current：900VA

Maximum Permitted work time of 3 parallel current：10S

Frequency range ( fundamental)：0~1000Hz

Harmonic time：0~20

DC current output：

Current output：0～±10A / phase,  0～±30A / 3 parallel

Output Precision：0.5 degree

AC voltage output：

Phase voltage output (effective value)：0~120V，Output Precision：0.2 degree

Line voltage output (effective value)：0~240V

Phase voltage / Line phase output power：80VA / 100VA

Frequency range (fundamental)：0~1000Hz

Harmonic time：0~20

DC voltage output：

Phase voltage output range：0～±160V， Output Precision  0.5 degree

Line voltage output range： 0～±320V

Phase voltage / Line phase output power：70VA / 140VA

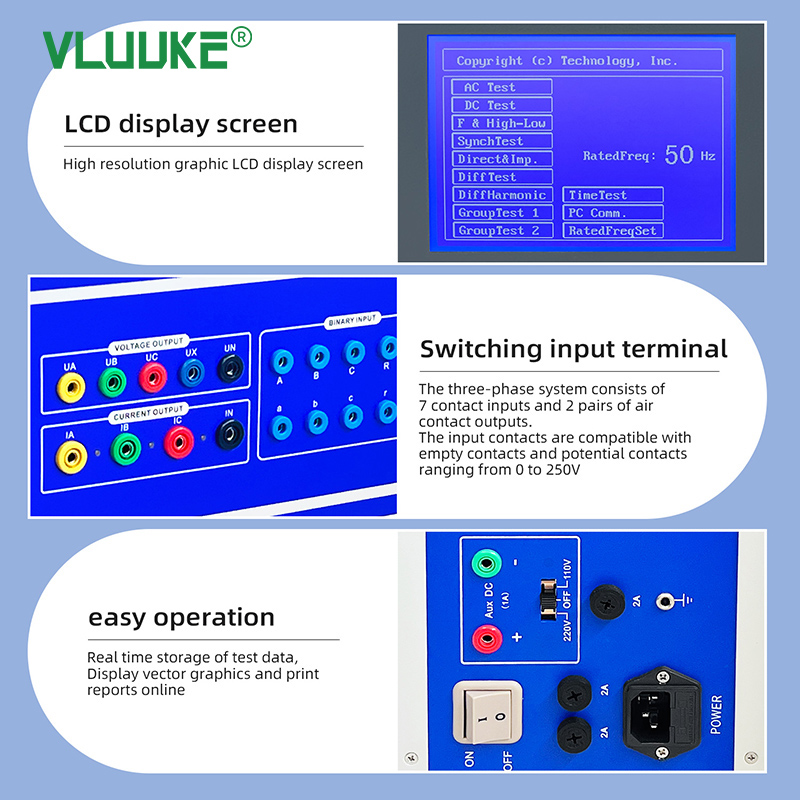

10 path digital input and 8 path digital output：

Time measuring range：0.1ms ～ 9999s ，accuracy of measurement ＜0.1ms
