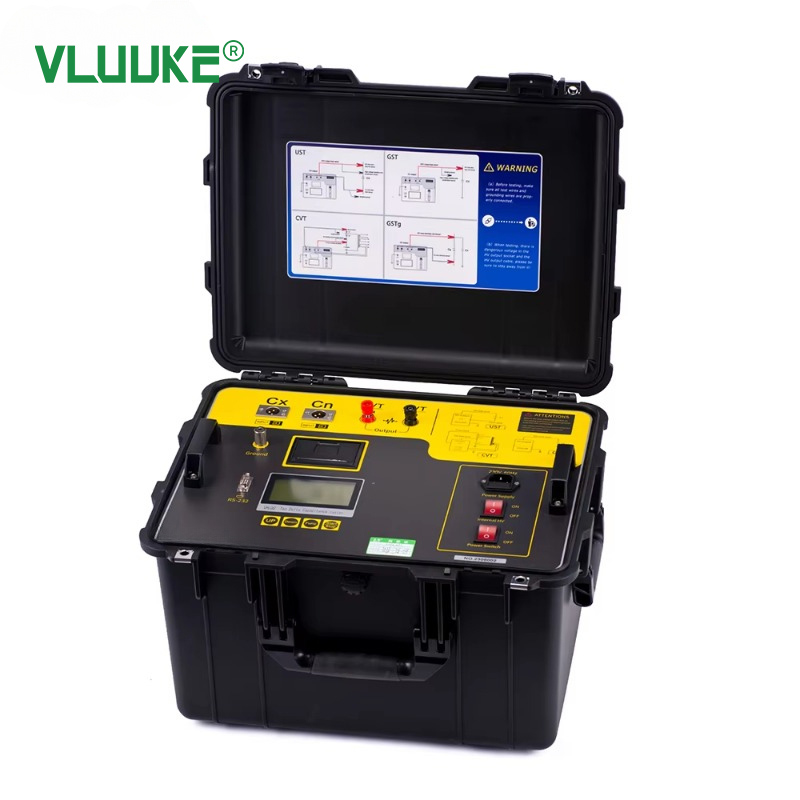

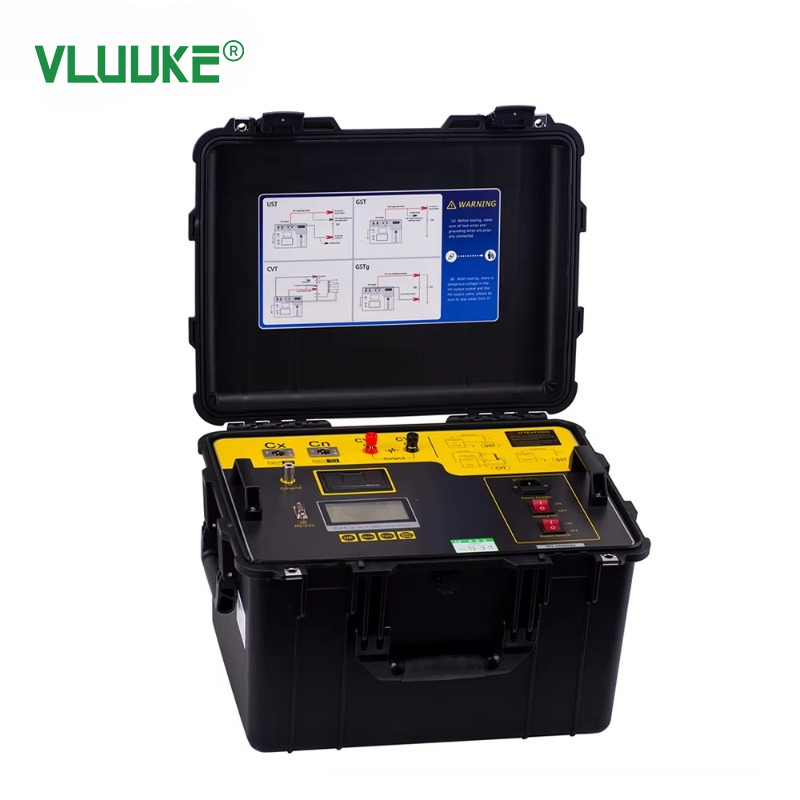

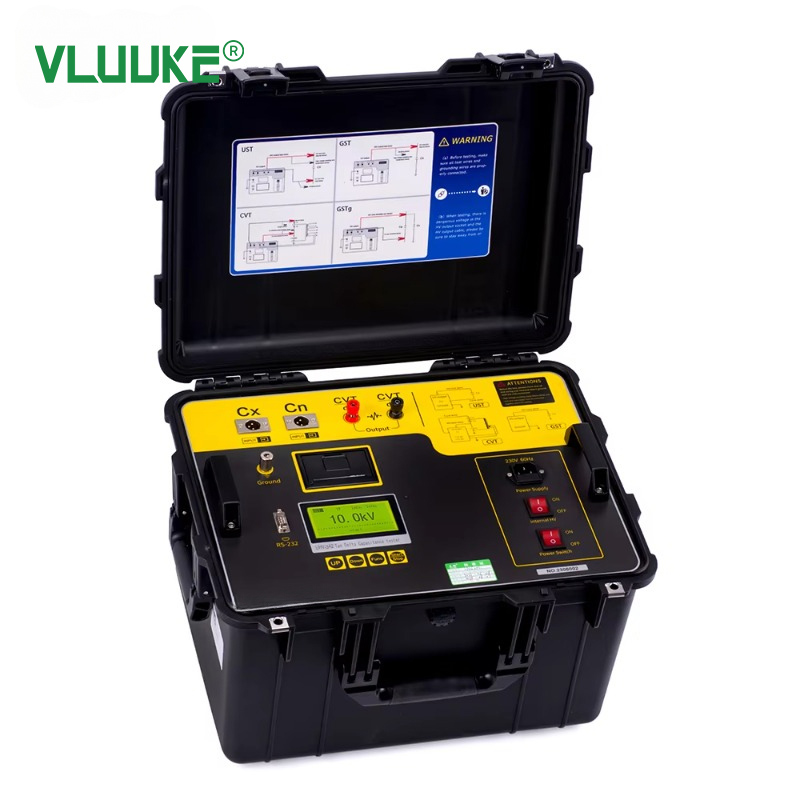

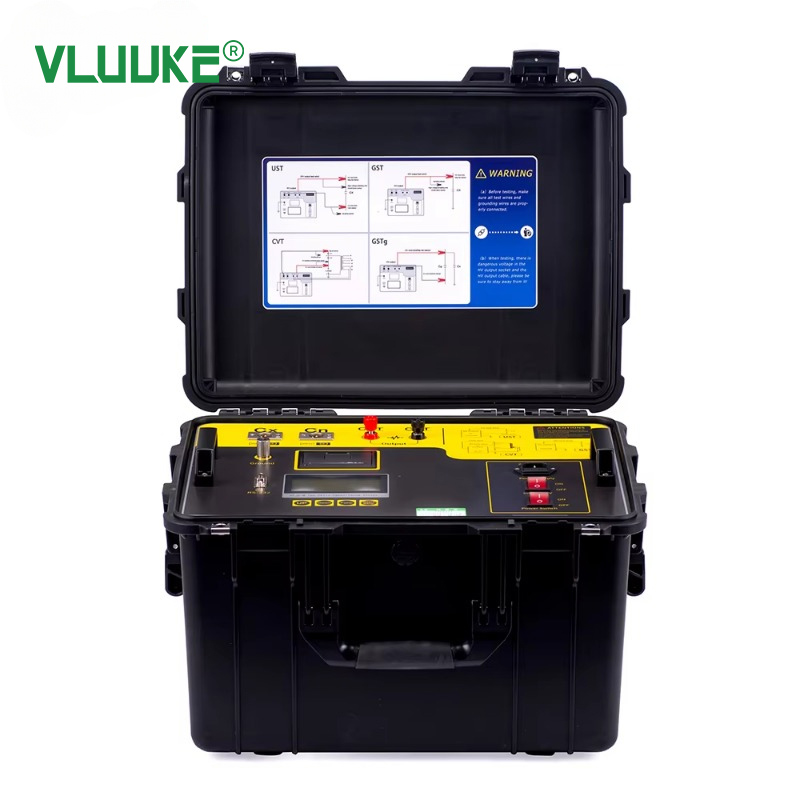

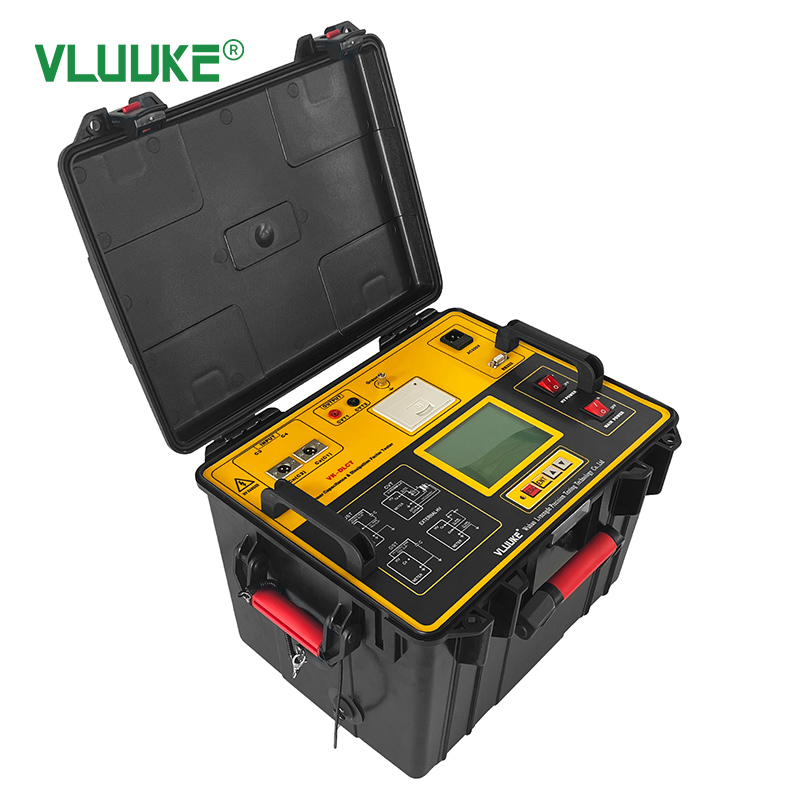

10kV Transformer Capacitance And Tan Delta Meter Dissipation Factor Tester
10kV Transformer Capacitance And Tan Delta Meter Dissipation Factor Tester
★High voltage output:0.5 ~10kV
★Measure rangee):0.001% < tg < 100%
★Power supply:AC 220V±10% 50±1Hz
★Test current range:10μA~5A
★Use condition:-10℃~50℃
$2700.00
  • Features
  • Specifications
  • Model

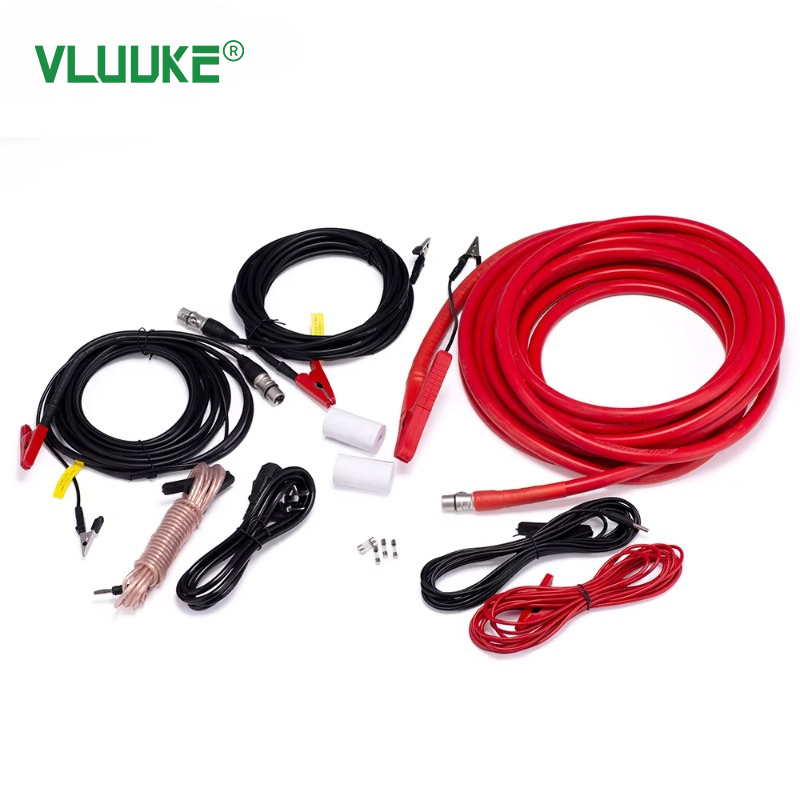

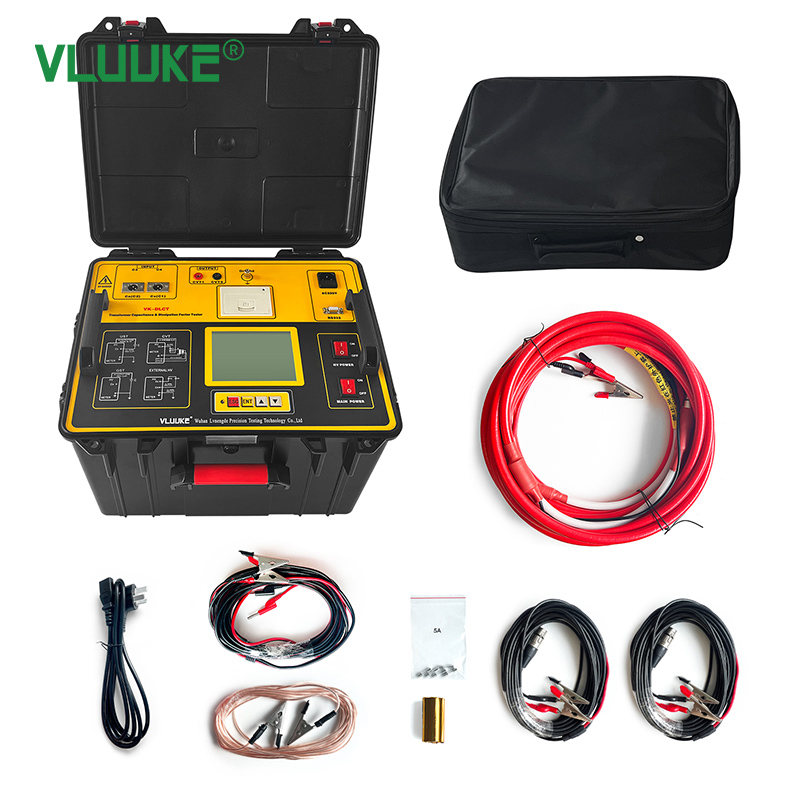

  • Accessories
  • Docs & Software

The dielectric loss tester USES complex current method to measure capacitance, dielectric loss and other parameters The precision of the test results is high, which is convenient for automatic measurement The dielectric loss tester USES frequency conversion technology to eliminate 50Hz power frequency interference in the field, which can provide reliable data even in the environment of strong electromagnetic interference The dielectric loss tester adopts large-screen liquid crystal display, and the testing process is intuitive and easy to operate through Chinese menu prompts

High voltage output

0.5~10kV

Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA

Accuracy

tgδ: ± (reading *1.5% +0.06%)

Cx: ± (reading * 1.5% +5 PF)

Resolution

tgδ: 0.01%

Cx: 1pF

Measuring range

0.01%

3PF

When it is 10kV、Cx ≤ 30000PF

When it is 5kV、Cx ≤ 60000PF

Power supply

AC 220V ± 10% 、 50 ± 1Hz

Measuring method

a.working frequency:50Hz

b.different frequency:45Hz/55Hz Automatic frequency conversion

Harmonic adaptation

≤ 3%

Application condition

-15 ℃-50 ℃ Relative humidity <80%

Dimension

460 (L) × 345 (W) × 350 (H)

Weight

35 kg
