VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
  • VKCR35AD AC/DC Current Clamp
VKCR35AD AC/DC Current Clamp
VKCR35AD AC/DC Current Clamp
★Range: 0.0A～1000A AC/DC
★Accuracy level: 2
★Phase error: ≤3°
★Working frequency: DC～400Hz
$40.00
  • Features
  • Specifications
  • Model
  • Accessories
  • Docs & Software

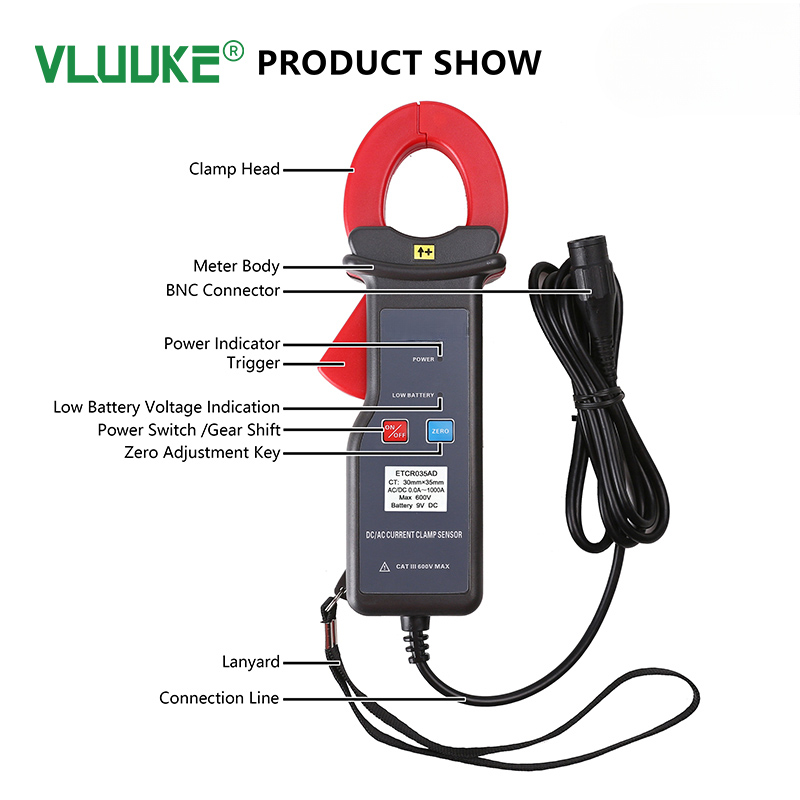

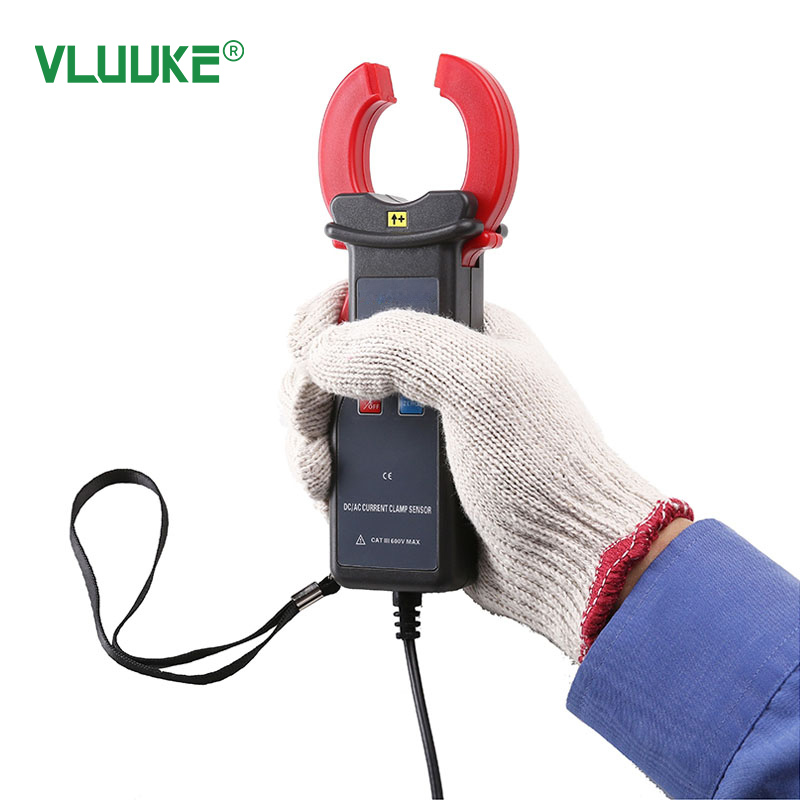

1. Clamp structure, no need disconnect the line being tested, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable..

2. Adopts Permalloy core and Hall induction technology, with high performance and high accuracy, high anti-interference ability.

3. Output current or voltage signal, the range, transformation ratio, output interface of the sensor could OEM.

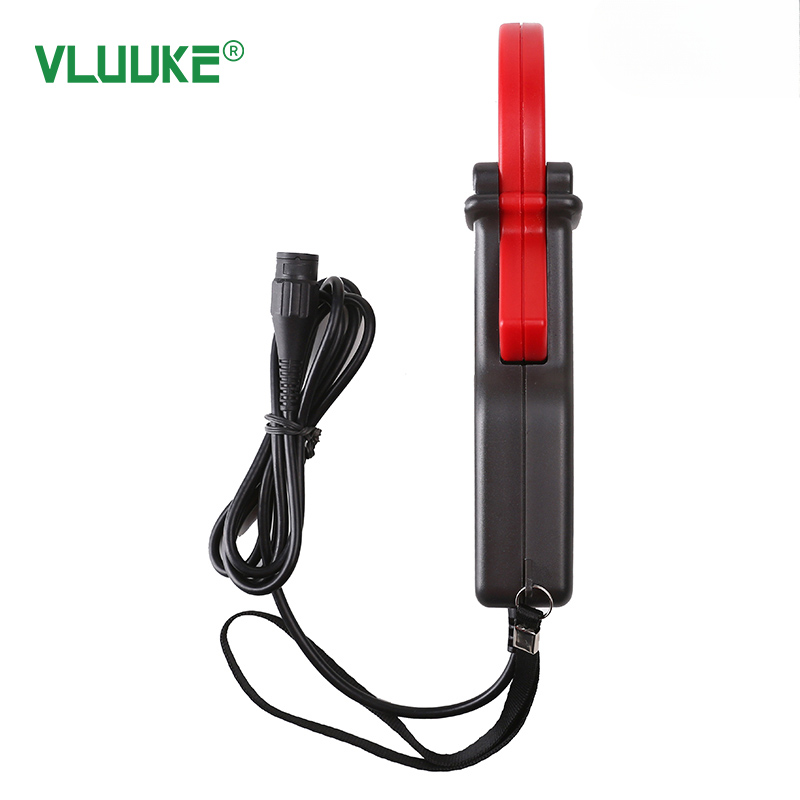

4. Output interface: 1.5m shield wires, the terminal interface: φ3.5mm Audio plug/BNC plug/4.0mm double banana plug (optional).

5. Insulating strength: AC3700V/ms (between the core and coil)

6. Safety class: CATⅢ600V

7. Working temperature: -15°C~50°C.



Model

VKCR035AD

Range

0.0A~1000A AC/DC

Resolution

0.1A

Accuracy Class

±2.0%

Output Signal

1mV/1A

Phase Error

≤3°

Reset Mode

ZERO reset rotary knob

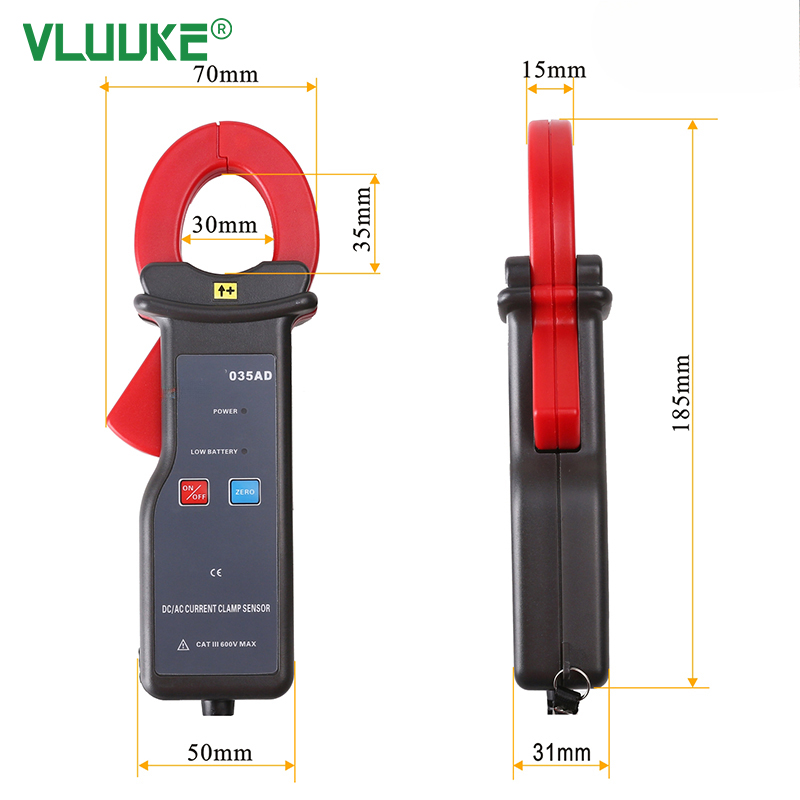

Clamp Size

30mmX35mm

Dimension

122mmX70mmX33mm

Weight

180g

Power Supply

9V DC 6F22
