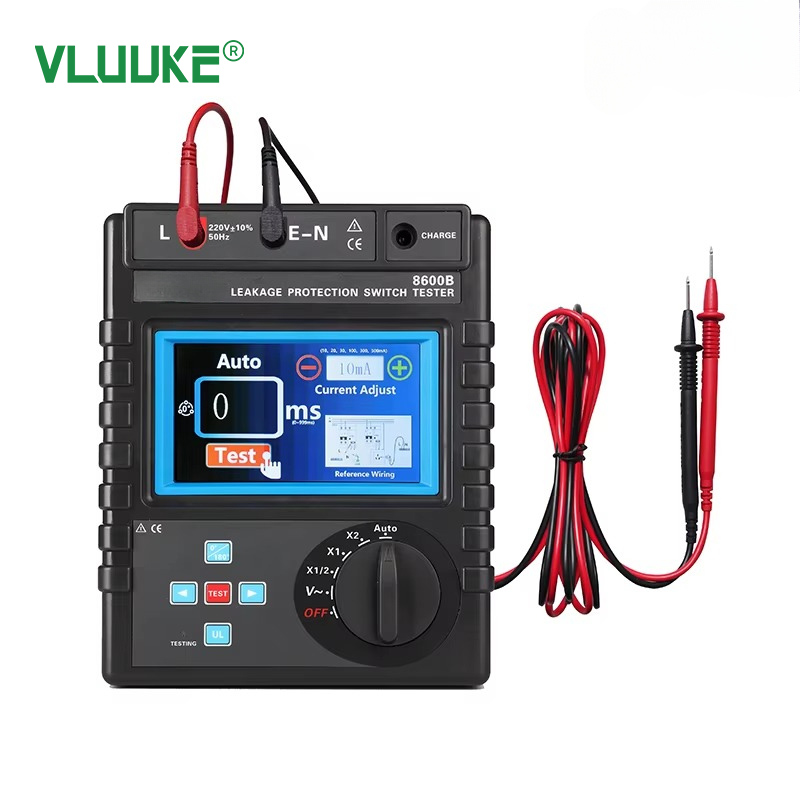

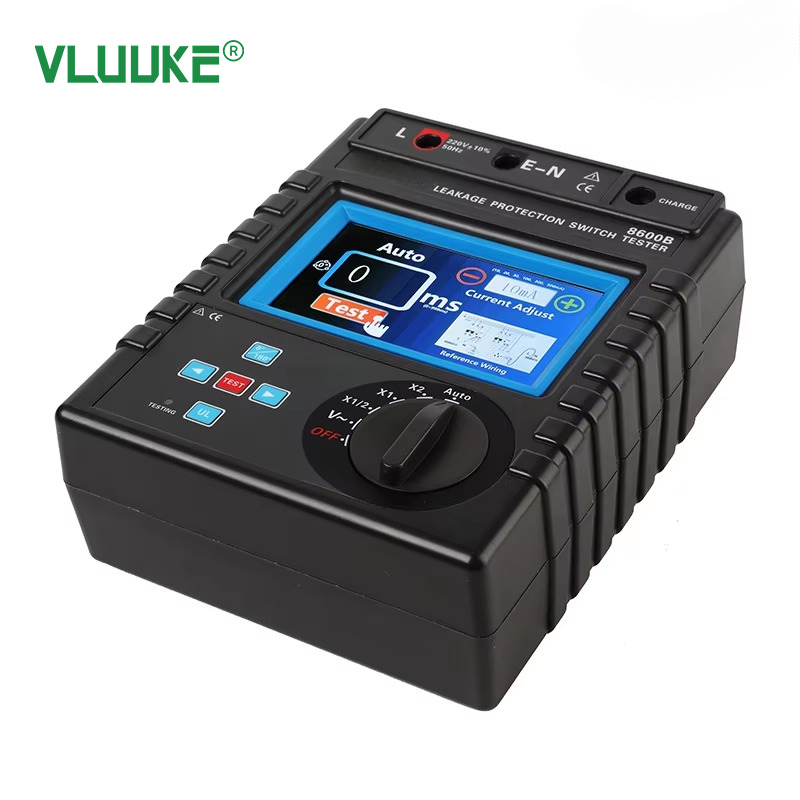

1. Adopts 5 inch touch color screen, with testing current gears selection, setting fault voltage indication, backlight brightness adjustment, battery power display, automatic shutdown and other functions.
2. The color screen is equipped with the wiring guide diagram, which is clear and clear and obvious.
3. Optional 5~1000mA of 16 ears test current to meet various require for usage.
4. Adopt rechargeable large capacity lithium battery.
Power Supply | DC 7.4V 2600mAh rechargeable lithium battery, the voltage of full charged battery is 8.4V. |
Display Mode | 5 inch TFT true-color touch screen |
Rated Voltage | AC 220V (The rated voltage of tester is AC 220V during leakage protection switch testing) |
Test Line Voltage | 220V/380V |
Leakage Current Gear | 5mA, 10mA, 15mA, 20mA, 30mA, 40mA, 50mA, 60mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA, 600mA, 1000mA |
Gear Current Accuracy | ±10%rdg±5dgt |
Test Range Of Leakage Current Operating Time | 0~999ms |
Accuracy Of Leakage Operating Time | ±5%rdg±3dgt |
AC Voltage Measurement Range | 0~600V |
AC Voltage Accuracy | ±2%rdg±3dgt |
Test Mode | Manual: X1 mode: 10mA, 20mA, 30mA, 100mA, 300mA, 500mA |
Failure Message Indication | LCD displays “999” timeout indication, indicates that tested rated operating current gear is low or leakage protector has fault. |
No. Of Memory Groups | 100 groups |
Length of test line | 1.5m |
Test Mode | Manual or automatic |
Tester Size | 215mm×178mm×83mm |
Weight | Host: about 944g (include battery); total weight: about 2kg(include accessory) |
Battery Voltage | When the battery voltage drops to 7.0V, the low battery voltage prompts the tester need to be charged in time. |
Working Current | 365mA Max |
Insulation Withstand Voltage | 100MΩ or greater, AC2kV/rms(between the housing and screw) |
Suitable Safety Standard | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) IEC61326(EMC Standard) |
Working Temperature & Humidity | -10℃~40℃; below 80%RH |
Store Temperature & Humidity | -10℃~60℃; below 70%RH |
